TF-100, LH-100, QS-S4 Display

TF-100, LH-100, QS-S4 Display

Regular price £24.99 GBP
Regular price Sale price £24.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

TF-100, LH-100, QS-S4 Display

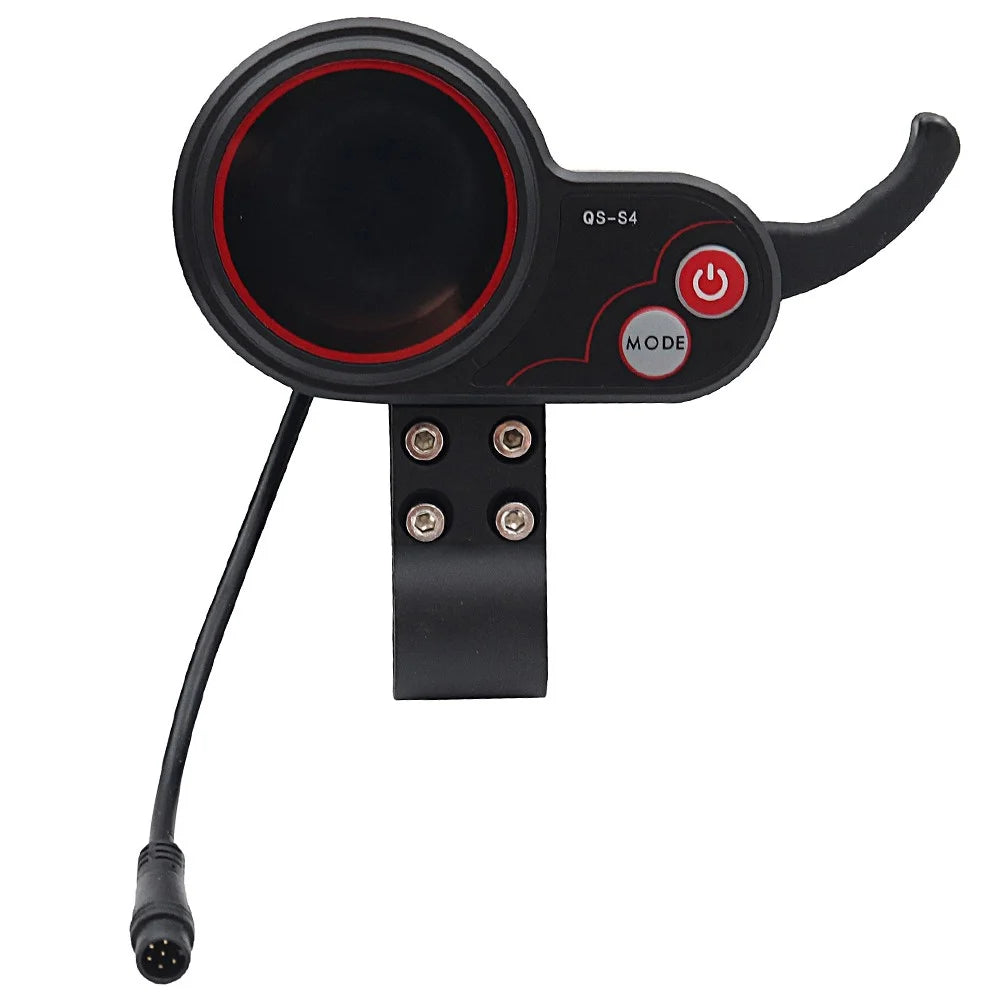

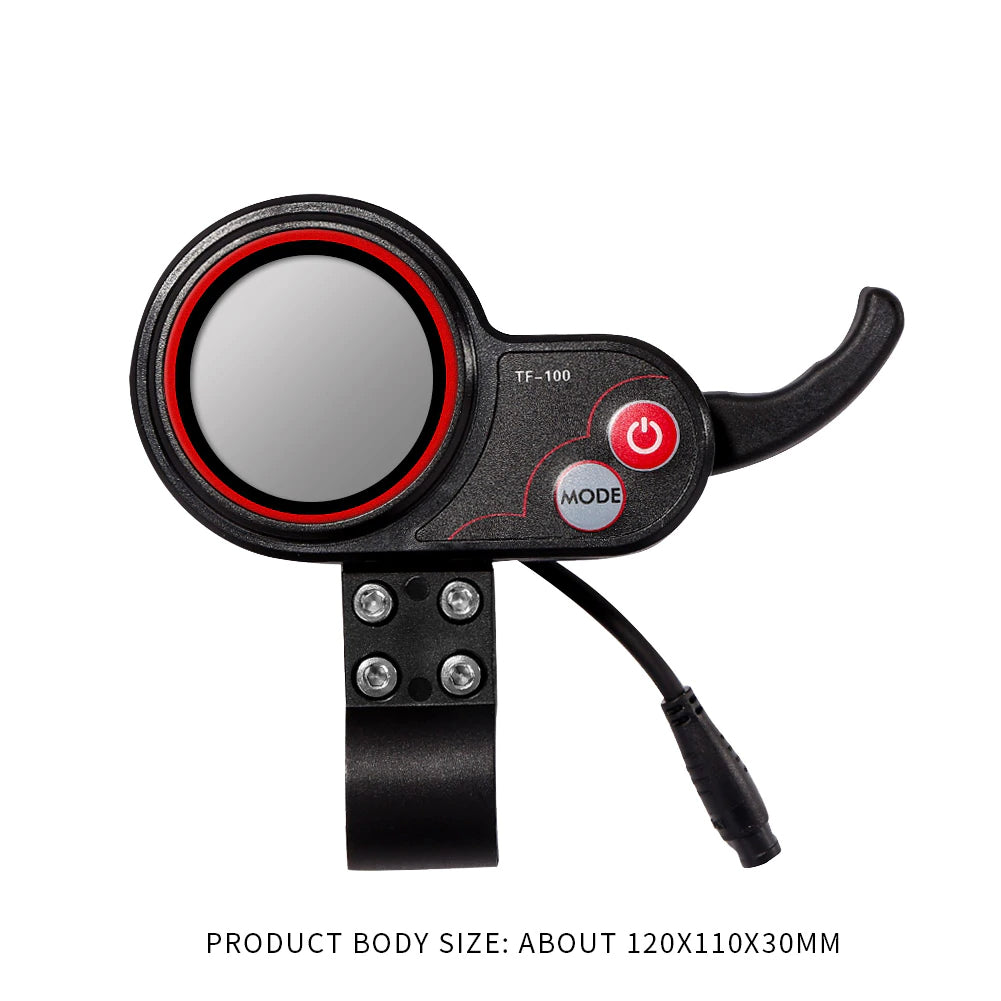

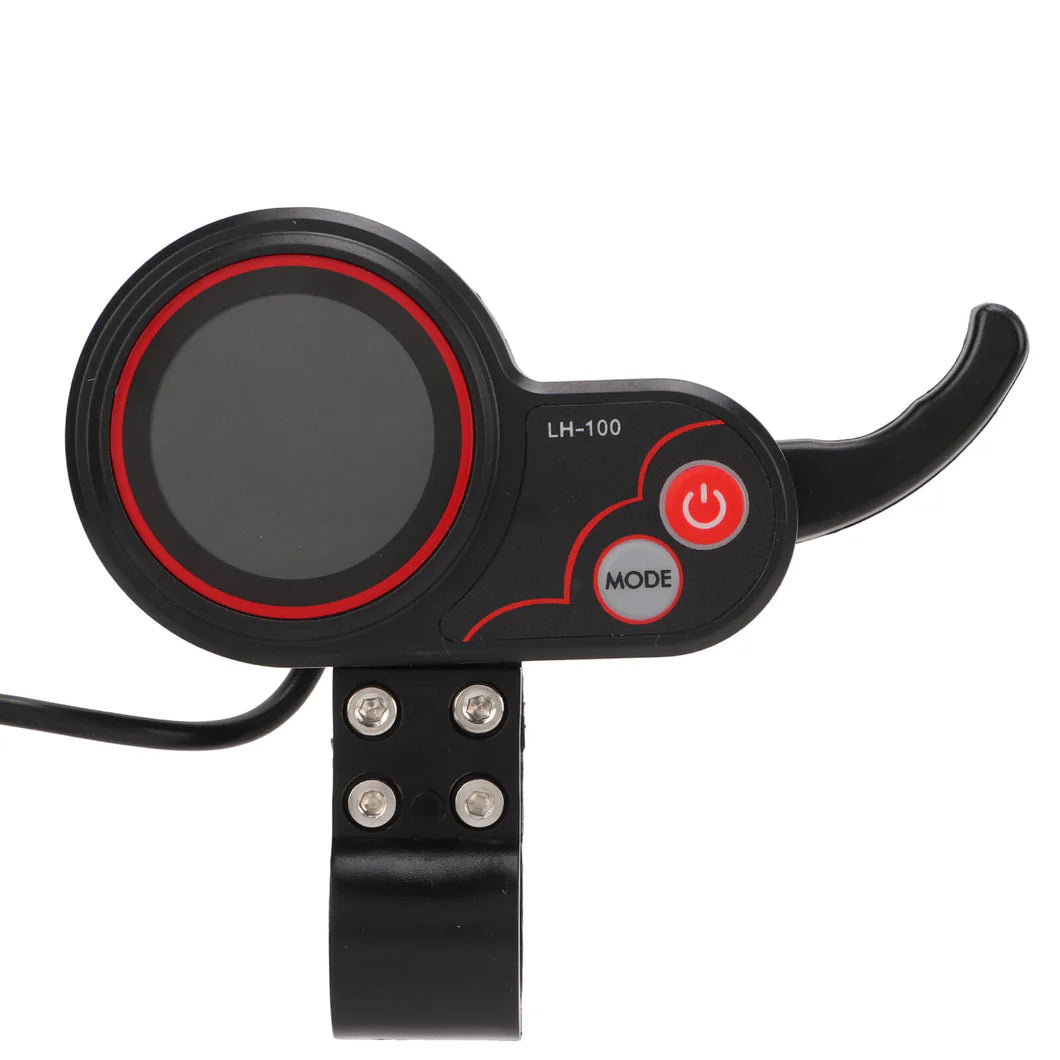

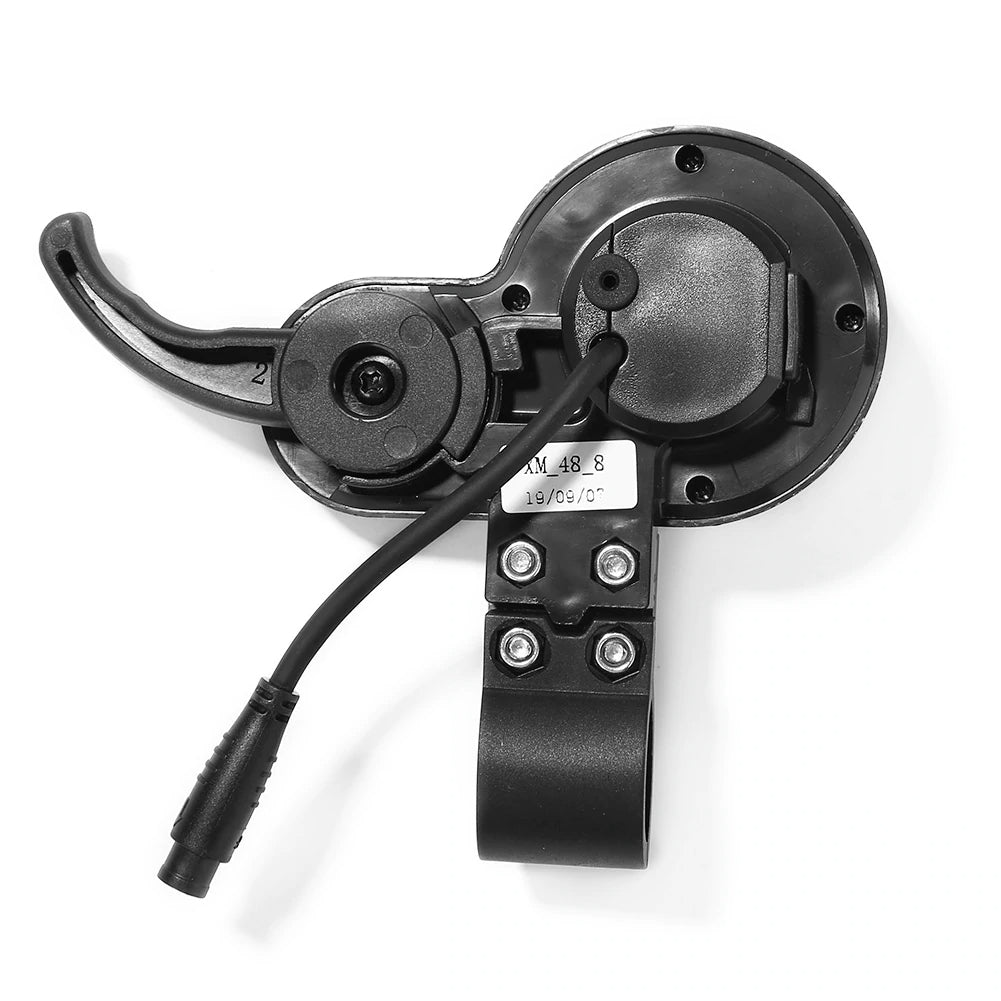

TF-100, LH-100, QS-S4 Displays, accelerator and settings controller with 6pin connection and USB interface.

These units are predominantly on 48v scooters such as the M4 pro. In the settings menu they can be changed to other voltages such as 24,36,48,52,60v

The display shows the various functions, Speed, battery, error code, odometer, Trip, gear.

The controller also features a USB charging output on the side (most people don't spot that) and we would advise its not used to charge phones or other gadgets as its simply an interface for programming.

To install simply remove the old display with an Alan key and unplug the cable. When installing the new display, make sure to test the angle of the accelerator lever before fully tightening the bolts. Plug back in to the din cable and away you go.
This install should not take longer than 5 minutes.

TF-100, LH-100, QS-S4 Display Error Codes:

0/1 - No error

2 - Brake - Check Brake sensor in the lever

3 - Pas sensor error - check all cables are connected

4 - 6KM/H cruise

5 - Timely cruise

6 - battery under voltage - loose cables or BMS error, if the battery is reading the correct voltage then you may have to replace the motherboard

7 - motor error - Check 5 pin connector in the scooter base - check cables are not damaged near the motor.

8 - Throttle error  - check all cables are connected - Replacement Display may be needed.

9 - Controller error - check all cables are connected - May need to replace motherboard.

10 - Communication receive error - check all cables are connected - May need to replace motherboard.

11 - Communication send error - check all cables are connected - May need to replace motherboard.

12 - BMS communication error (battery circuit board) - check all cables are connected if the fault persists check the voltage of the battery.

13 - Front light error. may need to replace is no obvious signs of loose cables

TF-100, LH-100, QS-S4 Display Settings:

It is advisable that you do not change any of the settings on the Kugoo M4 Display, however understanding what the different programs mean you may be able to better diagnose problems with the scooter.
P1 - Backlight

P2 - metric/ imperial  0 =KM, 1 =MPH

P3 - Voltage 24/36/48/60v (please note default is 36v, Do not change this setting unless you fancy upgrading all the wires and motherboard first, as a higher voltage will cause damage to fuses. This is a common reason for breakdowns)

P4 - Sleep time 0 = none 1-60 minutes

P5 - Gears 0 = 3 Gears mode (do not change)

P6 - Rim size - Unit in inches adjustable to 0.1 of an inch (if changing tyre sizes)

P7 - Speed testing magnetic steel number 0-255 (this relates to the magnets in the motor

P8 - Speed limit 0-100kmh (do not use this setting)

P9 - 0 push to start, 1 no push start required

P10 - Drive set. 0 = pedal drive throttle will not work 1= throttle dictates speed, 2=both work but you will have to push to start (of no use so don't change)

P11 - Pedal sensitivity (don't change)

P12 - Pedal strength set (don't change)

P13 - Pedal magnetic sensor set 5/8/12

P14 - Controller current limit set 1-20Amp (default 13Amp)

P15 - Controller under voltage settings

P16 - Odometer, long press for 5 seconds to reset to zero

P17 - 0: no cruise control, 1: cruise control

P18 - Indicating speed ratio set, scope 50-150%

P19 -0: with 0 gear, 1: no 0 gear

P20 - 0= 2 number protocol. 1=5S protocol. 2&3= standby
